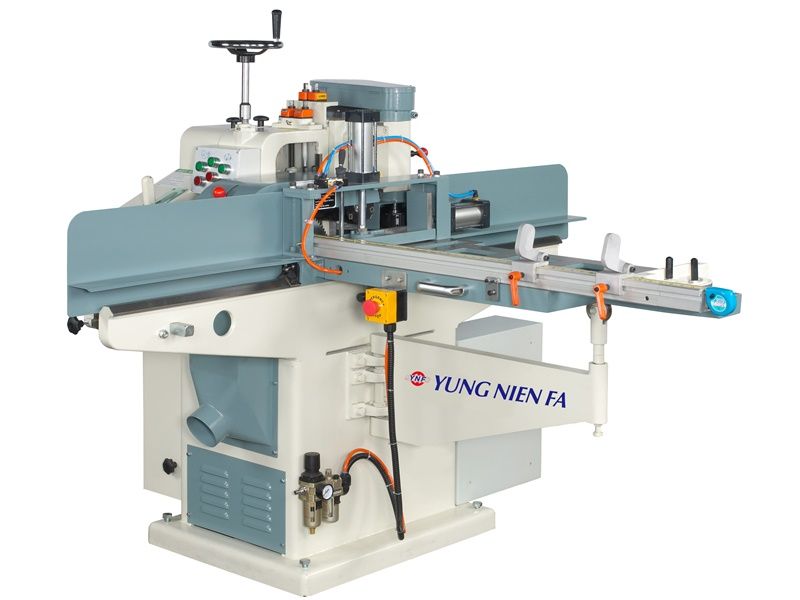

SINGLE END TENONING MACHINE
NT-152 Series:
●NT-152A
●NT-152B
●NT-152A
●NT-152B
●NT-152C
●NT-152P
●NT-152P
FEATURES :
TENON CUTTER HEAD
Both top and bottom tenon heads can be individually or
simultaneously vertically adjusted. Individual cross
adjustment in 1" distance. Helical and straight tenon
cutter heads on the 152 series provide excellent quality
results on a range of materials.
COPE HEAD
For fitting with pattern cutter producing various end
patterns. Cope spindle may be vertically or crosswise
adjusted. Vertical movement distaance is 140mm, Forward
and backward movement distaance is 100mm.
CUT OFF SAW
The saw mechanism is mounted in front of tenon heads
for cutting stock to the desired length. Sawblade may be
vertically adjusted. Saw head accepts 12" maximum blade
diameter.
SLIDING TABLE
Table slides on precision machined "V" ways, precise
sliding accuracy is assured. The bearing support permits
for effortless hand moving of table.
EXTENDABLE ALUMINUM RULER
Equipped with two work stops for convenient repetitive
cutting.
